| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

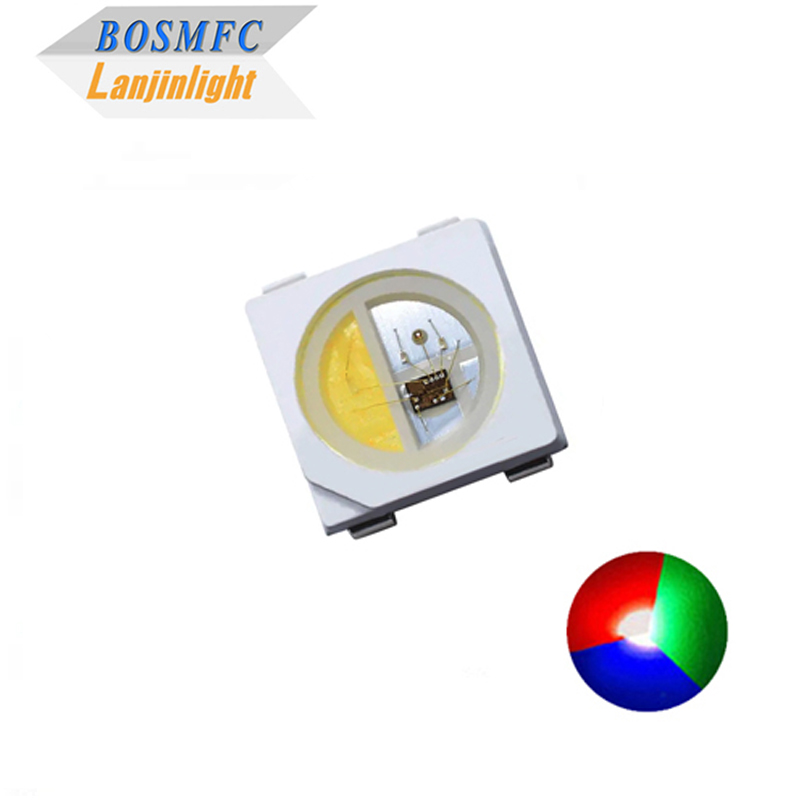

| Model Number: | 5050 RGBW LED built-in IC |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red Green Blue White | 625 525 466 CCT6500K | --- | 635 535 472 CCT10000K | nm | IF=12mA |
| Luminous intensity | Iv | Red Green Blue White | 500 2000 500 2000 | mcd | IF=12mA | ||
| Forward voltage | VF | 3.5 | --- | 5.5 | V | IF=12mA | |
| Viewing angle | --- | 120 | --- | deg | IF=12mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=12mA |

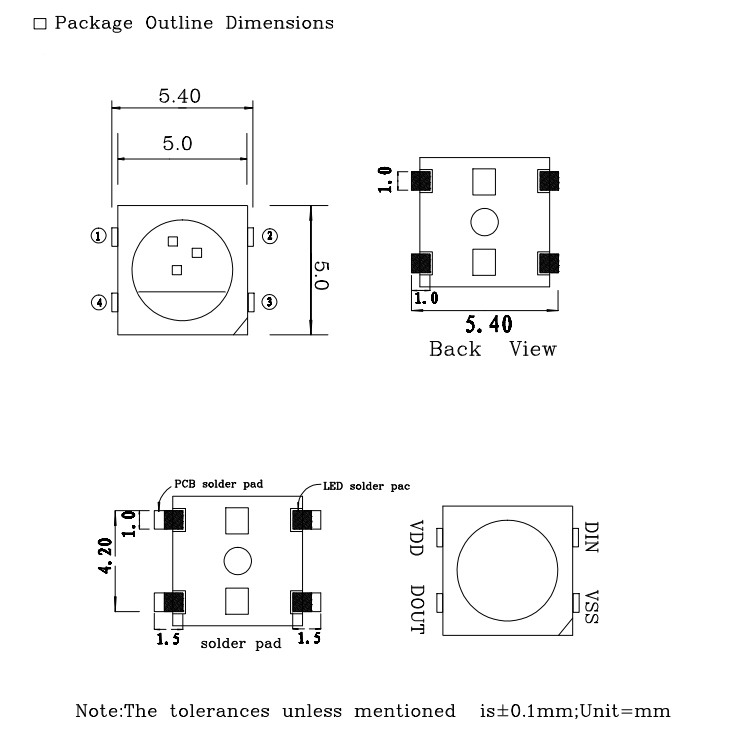

| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.6mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
