| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

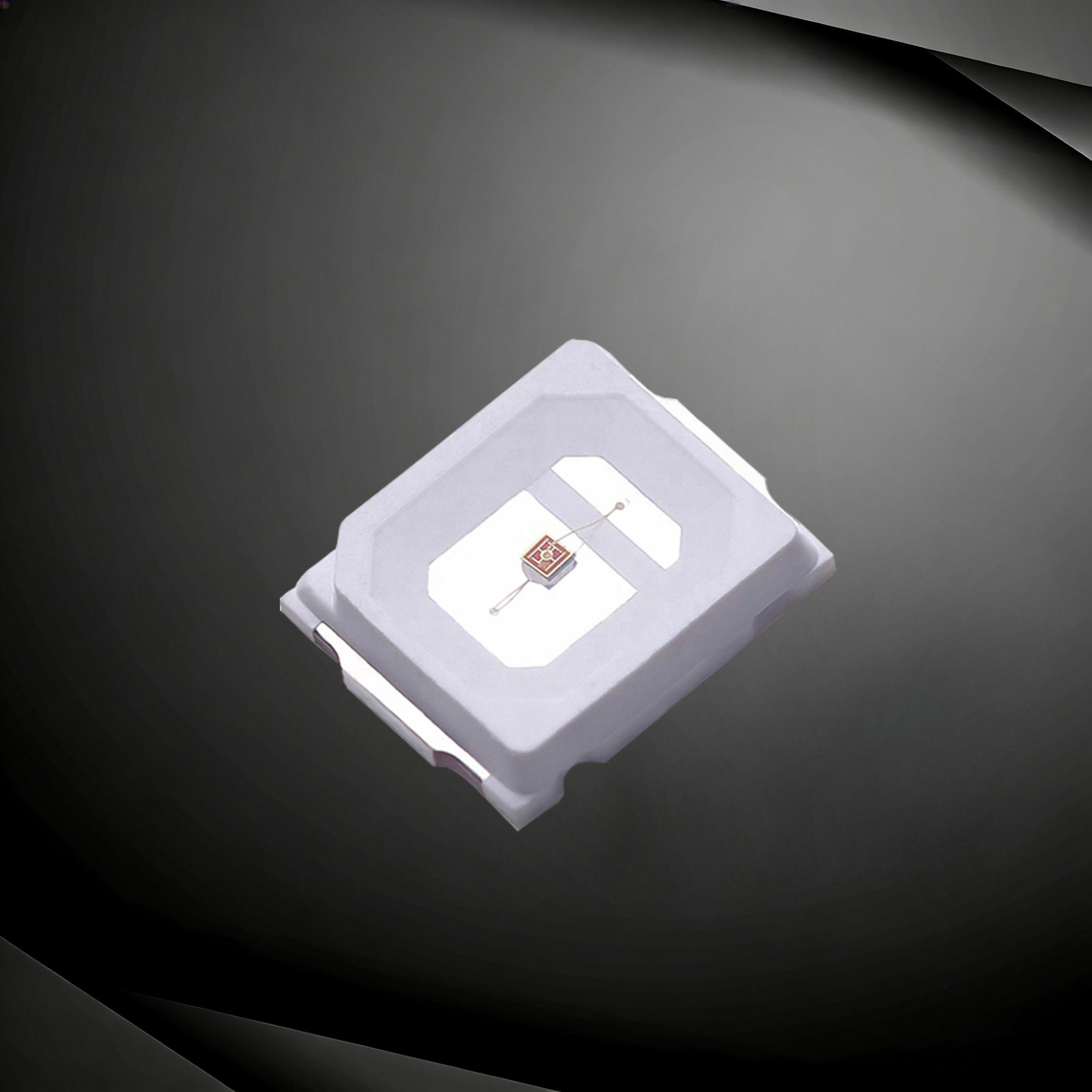

| Model Number: | 2835 UVA 395nm |
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Dominant Wavelength | λd | UV | 390 | --- | 400 | nm | IF=60mA |
| Power dissipation | Pt | UV | --- | 300 | --- | mW | IF=60mA |
| Forward voltage | VF | UV | 2.8 | --- | 3.6 | V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | --- | 5 | uA | IF=60mA | |
| Operation Temperature | -40~+85℃ | ||||||

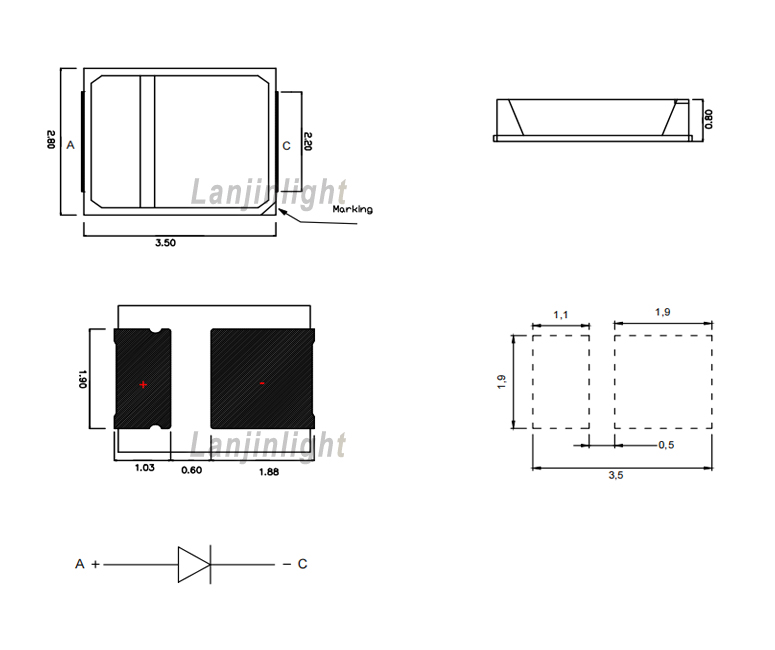

| Size | 3.5×2.8×0.8mm | ||||||
| Storage Temperature | -40~+100℃ | ||||||
| Packing | 4000pcs/reel | ||||||
Application:
UVA (315–400nm)
Currency Detection: Verifying banknotes to spot counterfeits.
Mosquito Trapping: Attracting and killing insects in pest control devices.
Industrial Coatings: Curing metal and wood coatings or for lithography.
UVB (280–315nm)
4. Medical Phototherapy: Treating skin conditions like scabies.
5. Plant Growth: Promoting healthy growth and yields in indoor farming.
6. Food Preservation: Extending shelf life by inhibiting spoilage.
UVC (200–280nm)
7. Air Purification: Sterilizing airborne bacteria and viruses in air purifiers.
8. Water Purification: Destroying microorganisms in water treatment systems.
