| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |
| Model Number: | 3535 UVA 395nm + UVC 275nm |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
Technical Specifications
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UVA UVC | 390 260 | --- | 400 280 | nm | IF=50mA |
| Power dissipation | Pt | UVA UVC | 3 15 | --- | 5 60 | mW | IF=50mA |
| Forward voltage | VF | UVA UVC | 5 3 | --- | 7 3.6 | V | IF=50mA |
| Viewing angle | --- | 120 | --- | deg | IF=50mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=50mA |

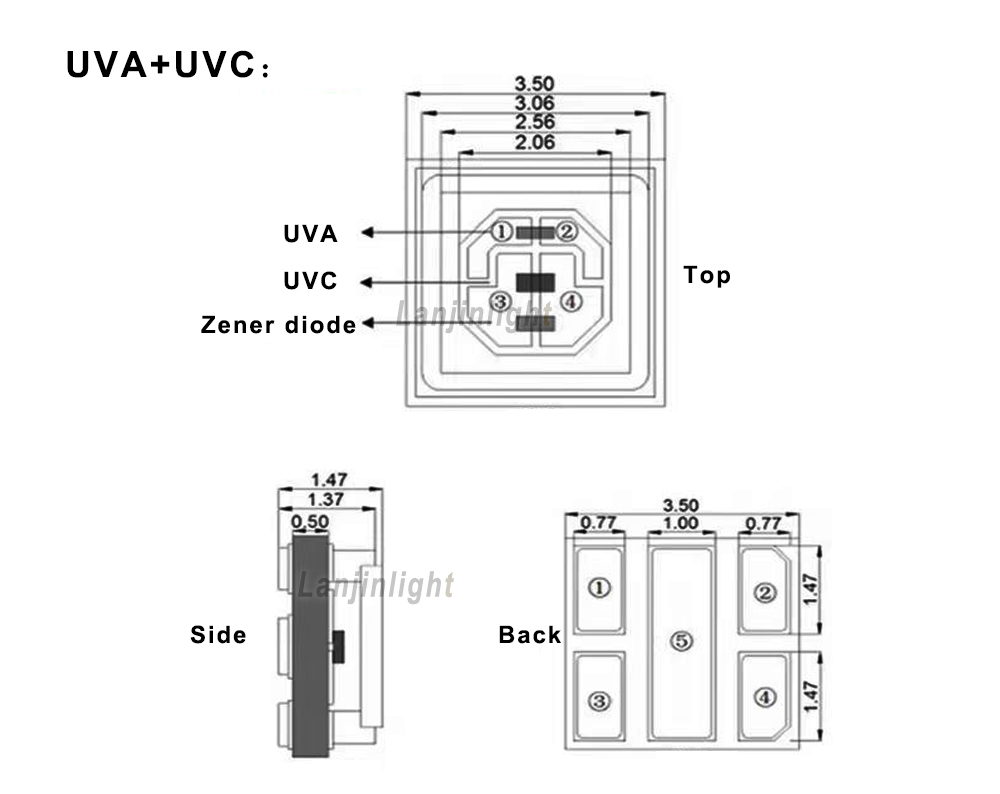

| Operation Temperature | －40~+85℃ | Size | 3.5*3.5*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/Reel |
Application:
UVA (315–400nm)
Currency Detection: Verifying banknotes to spot counterfeits.
Mosquito Trapping: Attracting and killing insects in pest control devices.
Industrial Coatings: Curing metal and wood coatings or for lithography.
UVB (280–315nm)
4. Medical Phototherapy: Treating skin conditions like scabies.
5. Plant Growth: Promoting healthy growth and yields in indoor farming.
6. Food Preservation: Extending shelf life by inhibiting spoilage.
UVC (200–280nm)
7. Air Purification: Sterilizing airborne bacteria and viruses in air purifiers.
8. Water Purification: Destroying microorganisms in water treatment systems.
