| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

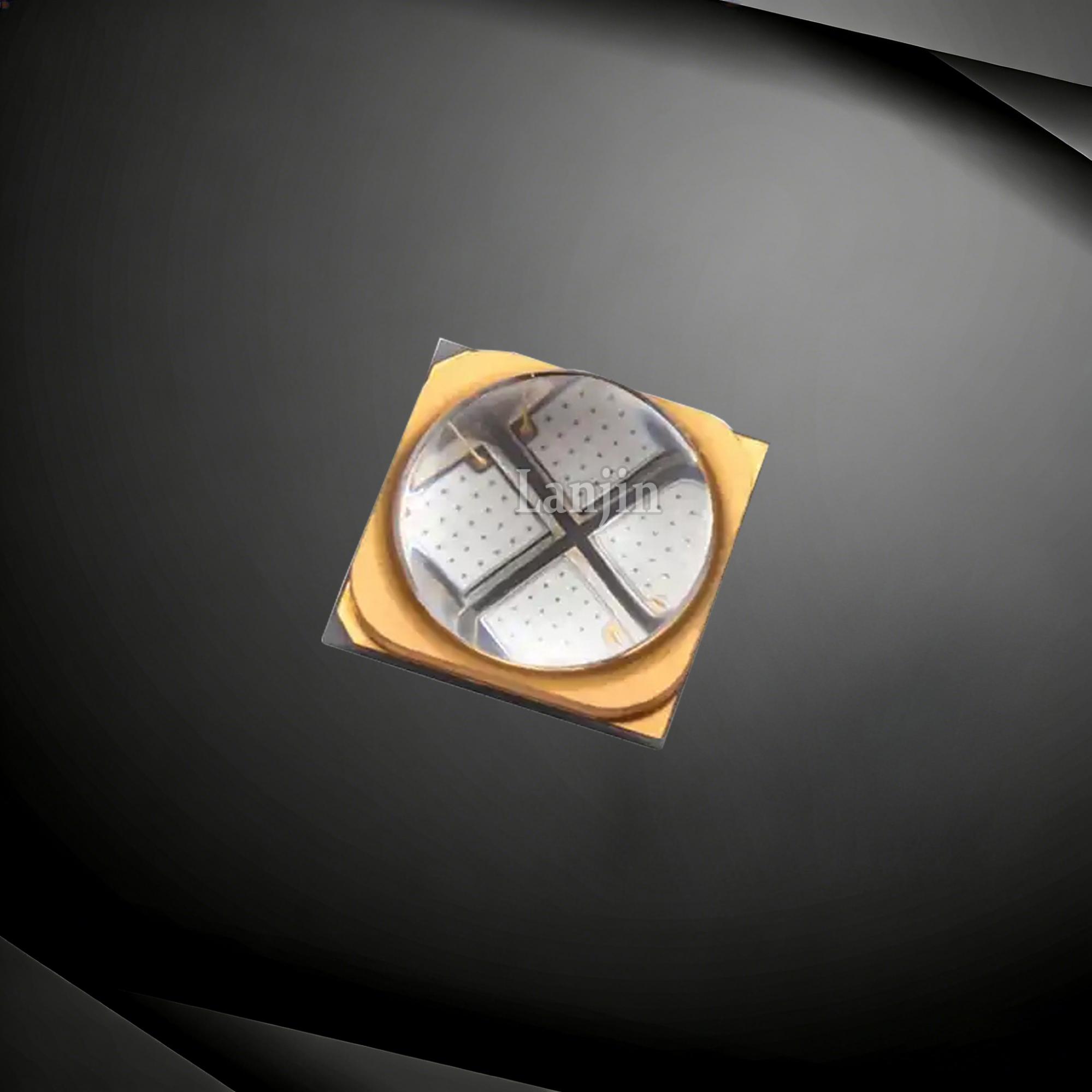

| Model Number: | 6565 UVA 365nm |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 360 | --- | 370 | nm | IF=700mA |
| Power dissipation | Pt | UV | --- | 5000 | --- | mW | IF=700mA |
| Forward voltage | VF | UV | 3.0 | --- | 3.6 | V | IF=700mA |
| Viewing angle | --- | 120 | --- | deg | IF=700mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=700mA |

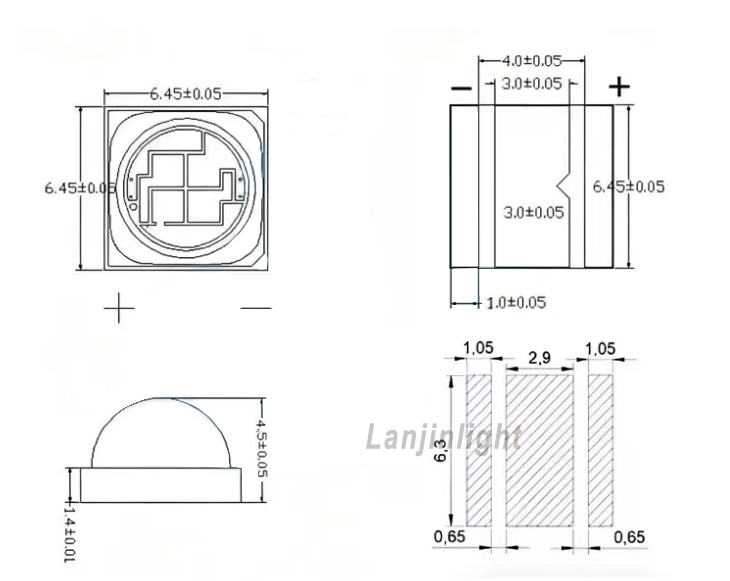

| Operation Temperature | －40~+85℃ | Size | 6.5*6.5*4.5mm |
| Storage Temperature | －40~+100℃ | Packing | 500pcs/bag |

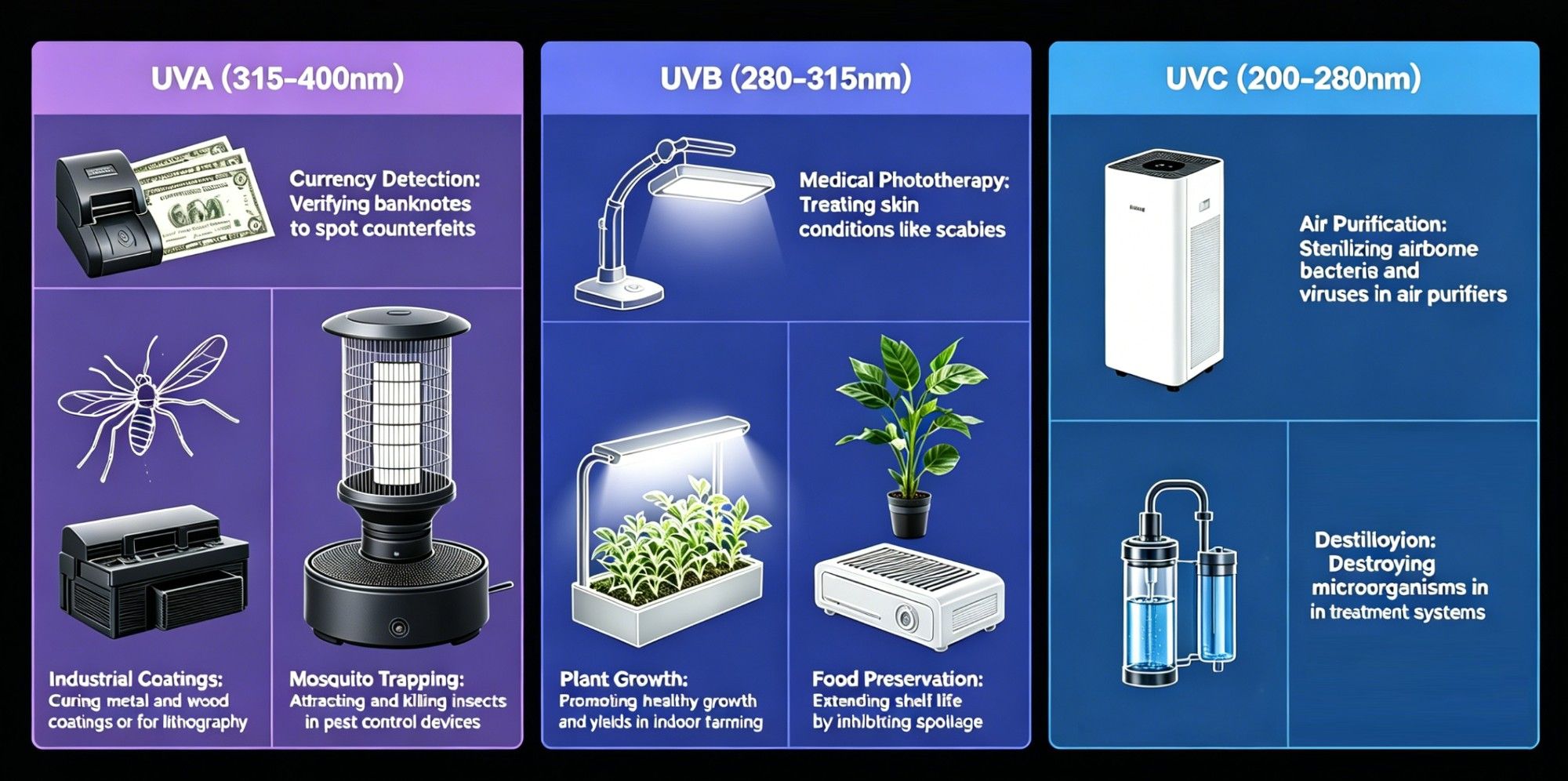

Application:
UVA (315–400nm)
Currency Detection: Verifying banknotes to spot counterfeits.
Mosquito Trapping: Attracting and killing insects in pest control devices.
Industrial Coatings: Curing metal and wood coatings or for lithography.
UVB (280–315nm)
4. Medical Phototherapy: Treating skin conditions like scabies.
5. Plant Growth: Promoting healthy growth and yields in indoor farming.
6. Food Preservation: Extending shelf life by inhibiting spoilage.
UVC (200–280nm)
7. Air Purification: Sterilizing airborne bacteria and viruses in air purifiers.
8. Water Purification: Destroying microorganisms in water treatment systems.
