| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

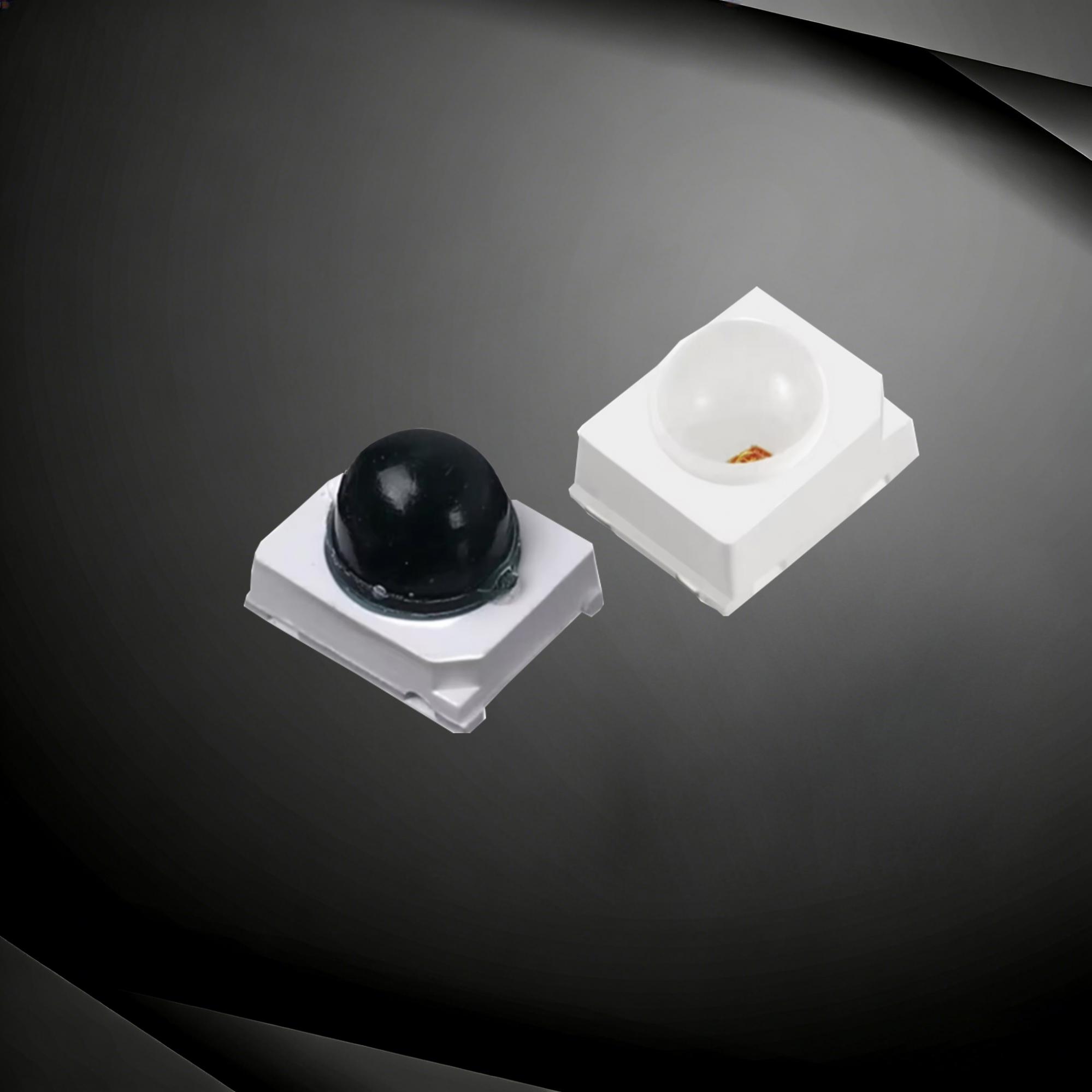

| Model Number: | 2835 IR LED 850nm |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Infrared | --- | 850 | --- | nm | IF=100mA |
| Radiant power | Ee | Infrared | 30 | --- | 45 | mw/Sr | IF=100mA |
| Forward voltage | VF | Infrared | 1.2 | --- | 1.6 | V | IF=100mA |
| Viewing angle | --- | 30/60 | --- | deg | IF=100mA | ||
| Reverse current | IR | --- | ---- | 10 | uA | IF=100mA |

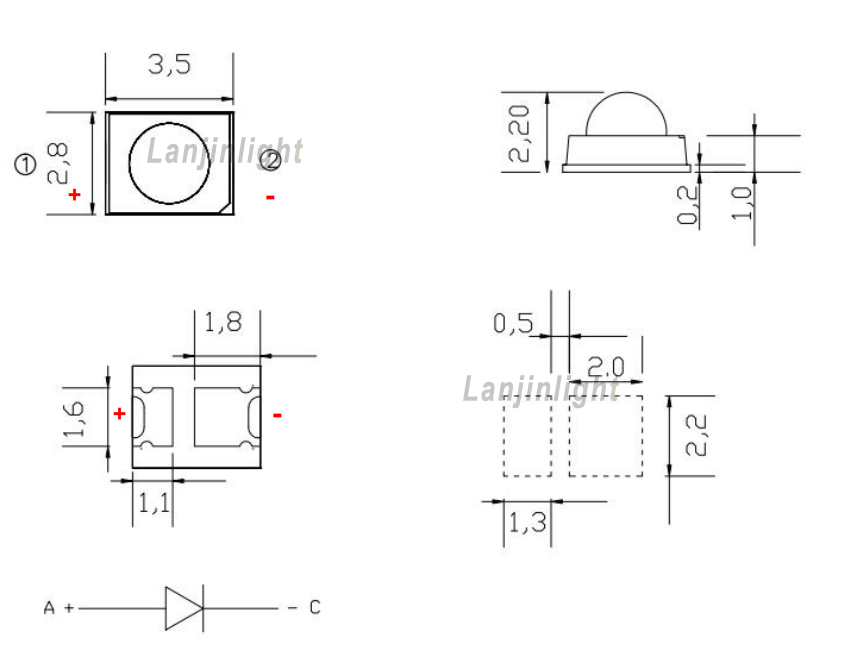

| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*2.5mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Application:
TV/AC remote
Smart curtains, IR barriers, motion sensors
Architectural lighting (buildings, bridges, etc.)
Pulse oximeters, IR thermometers, PPG for vital signs.
Driver fatigue monitoring, night vision (ADAS).
Remote toys, sensor faucets, astronomy.
