| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

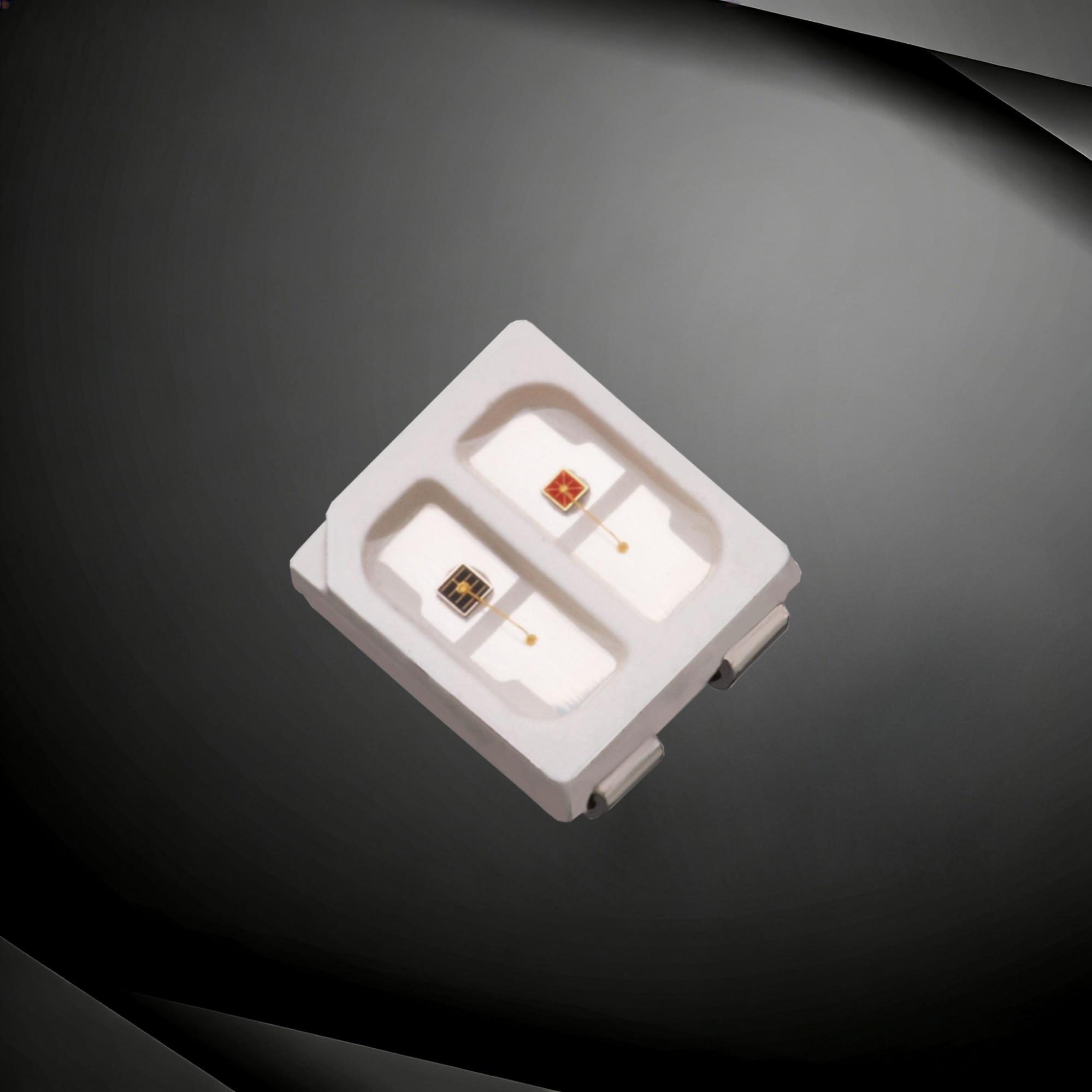

| Model Number: | 3528 IR LED dual-color |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Luminous intensity | Iv | 620nm / 850nm | - | 3 LM / 7 mW | - | LM / mW | IF=20mA |
| Dominant wavelength | - | 620nm / 850nm | 620 / 840 | - | 630 / 860 | nm | IF=20mA |
| Forward voltage | VF | 620nm / 850nm | 2.0 / 1.4 | - | 2.4 / 1.8 | V | IF=20mA |
| Viewing angle | - | - | - | 120 | - | deg | IF=20mA |
| Reverse current | IR | - | - | - | 5 | uA | IF=20mA |

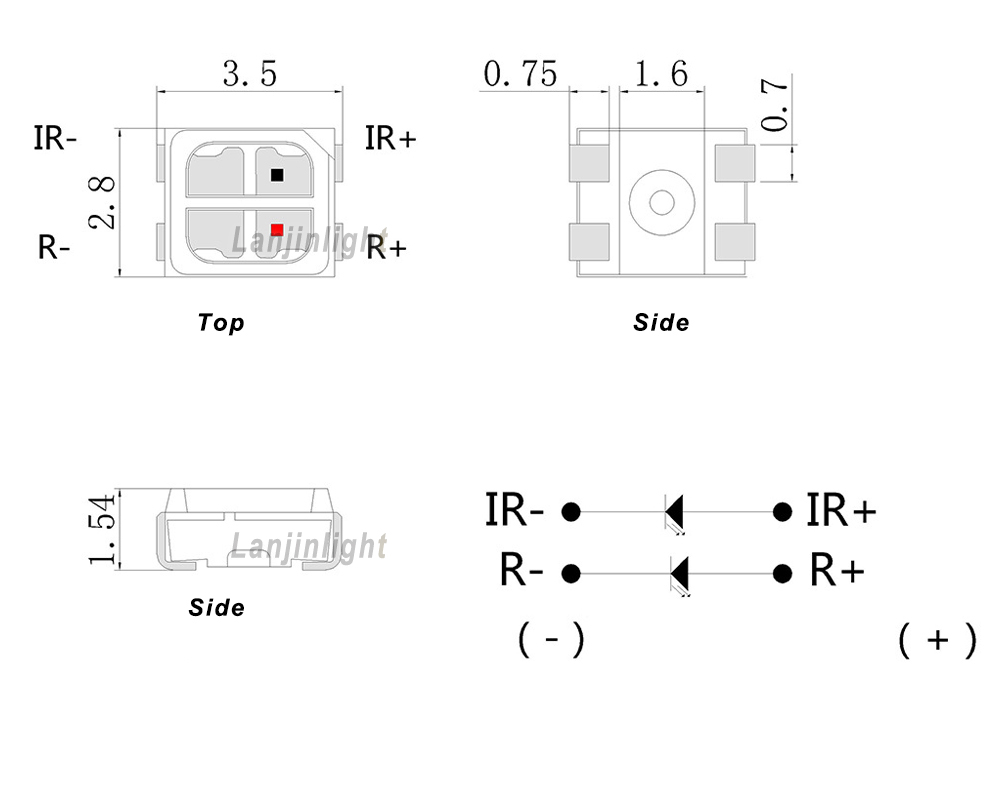

| Operation Temperature | -40~+85℃ | Size | 3.5×2.8×1.5mm | ||||
| Storage Temperature | -40~+100℃ | Packing | 2000pcs/reel | ||||
Skin Rejuvenation & Anti-Aging
Uses red light to boost collagen and reduce wrinkles.
Acne Treatment & Prevention
Uses blue light to eliminate acne-causing bacteria.
Muscle & Joint Pain Relief
Uses infrared light to soothe deep tissue and inflammation.
Targeted Eye Care
Reduces dark circles and puffiness in focused treatments.
Wound Healing & Tissue Repair
Accelerates recovery of skin and muscle injuries.
Wearable Physical Therapy
Enables portable pain management for knees and shoulders.
