| Place of Origin: | China |
|---|---|
| Brand Name: | Lanjinlight |
| Certification: | RoHS , Reach |

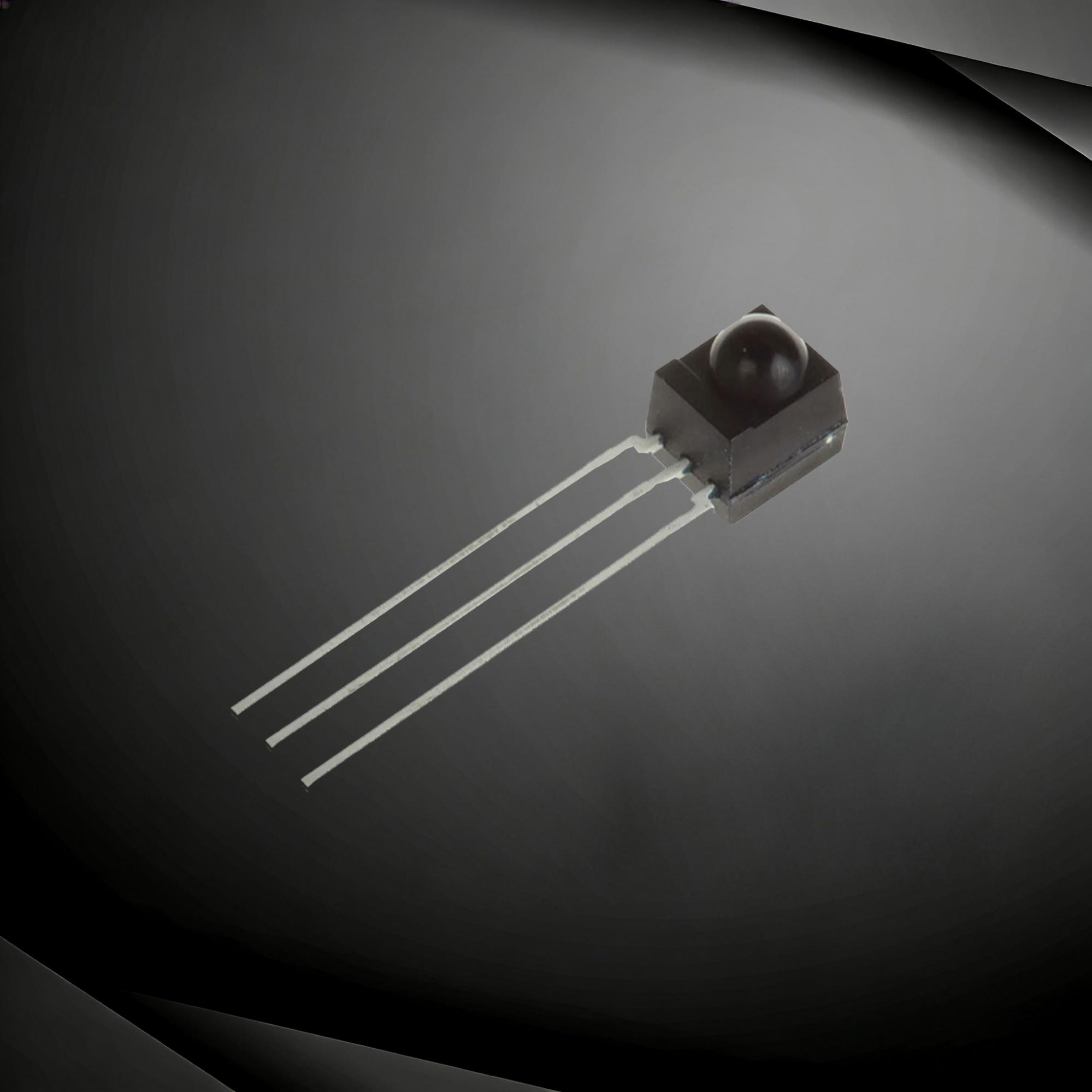

| Model Number: | IR Receiver 0038 |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 500pcs/reel |
| Delivery Time: | sample: 7 days, mass production: 15 days |
| Payment Terms: | TT in advance |
| Supply Ability: | 500K per day |
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Working current | Icc | Iin-0uA, Vcc=3V Iin-0uA, Vcc=5V | --- | 0.3 0.4 | 0.7 0.9 | mA |
| Receiving distance | L | 13 | 18 | M | ||
| Receiving angle | θ1/2 | EV=200+50LUX range attenuation 1/2 | +-35 | Deg | ||
| Carrier frequency | f. | --- | 38 | --- | KHz | |
| BPF width | fbw | -3Db band width | 3.5 | 6.0 | 8.5 | KHz |
| Low level output | Vol | Isink=2.5mA | --- | 0.2 | 0.4 | V |
| High level output | Voh | Vcc=3V Vcc=5V | 2.7 4.7 | 3.0 5.0 | --- | V |
Application:
TV/AC remote
Smart curtains, IR barriers, motion sensors
Architectural lighting (buildings, bridges, etc.)
Pulse oximeters, IR thermometers, PPG for vital signs.
Driver fatigue monitoring, night vision (ADAS).
Remote toys, sensor faucets, astronomy.
